INFORMATION DETAILS
ID: 13346463
|
Year: 2015
|
Make: Landoll
|
Model: 329C-51
|
Type: New
|
| MSRP:
N/A |
Engine Size - cc: N/A |
| CAPACITY: | 60 Ton |
| BASE WEIGHT: | 22,500 lbs. (+/- 3%) |
| DECK: | 24' Lower |
| AXLES: | 3 |
| TIRES & PLY RATING: | (12)295/75R 22.5 LRG |
SELLER DESCRIPTION

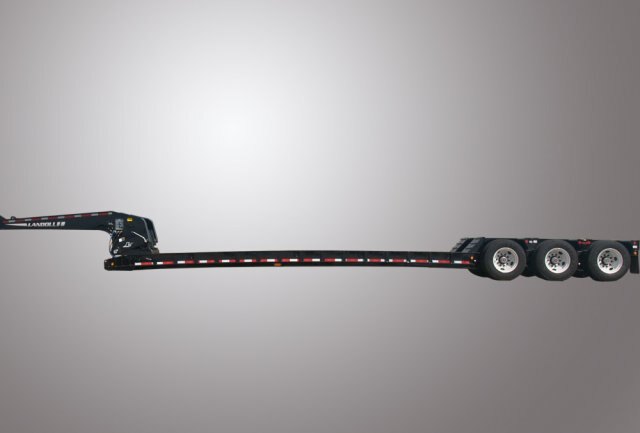

60 Ton Non-Ground Bearing Detachable
The Model 329 detachable trailer has triple axles and a heavy 60-ton capacity (120,000 lbs. in 10 feet) and can haul loads safely and effectively. Manufactured with only high tensile strength steel and high quality components, the Model 329 will last the long haul and retain its' resale value.
|
Design and Many Features
Landoll's detachable gooseneck is second to none in the problem solving category. The rugged scraper style gooseneck with vertical lift cylinders and Landoll's unique fifth wheel lock assembly has the ability to get you hooked up at the roughest job site and on the road. Landoll detachables have a centralized grease system for ease of maintenance and reduced downtime.
|

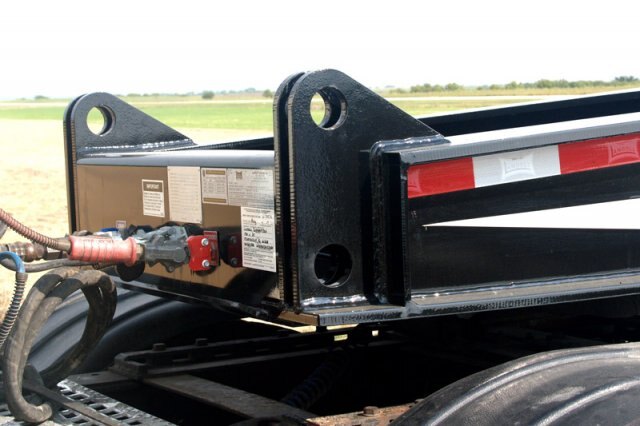

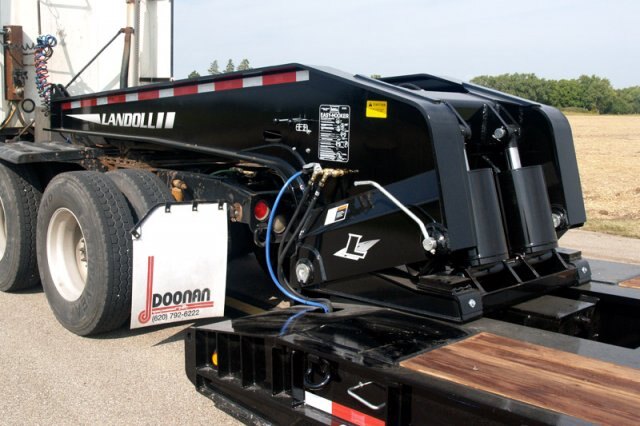

Gooseneck Design
The Model 329 is equipped with a fifth Wheel Type Automatic Gooseneck Lock Engagement with Lock/Unlock Visual from Tractor Cab.
|
|
Features
|
-
*Capacity: 60 Ton
-
Deck Rating: 120,000 lbs. in 10'
-
Estimated Base Weight: 22,500 lbs. (51')
-
Main Frame: Fabricated 16", 100,000 PSI Flange
-
Crossmembers: 8" High Tensile I-Beams on 20" Centers
-
Tires: 295/75R 22.5 LRG Radial Goodyear
-
Rims: 22.5x8.25
-
Wheels: Hub Pilot / Steel Outboard Brake Drums
-
Axles: 3 - 25,000 lb. Dual Tire, Oil Bath Bearings 49" Spacing
-

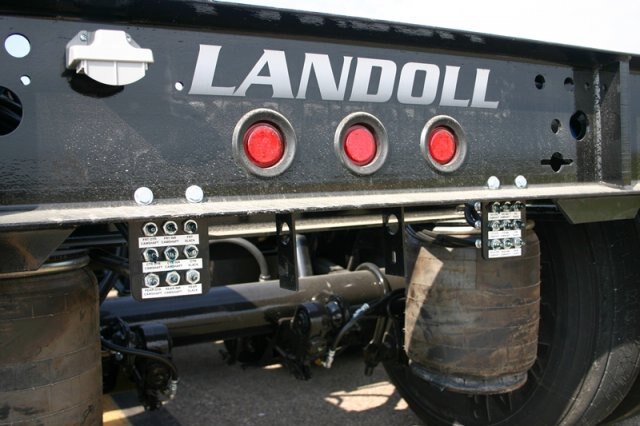

Suspension: Neway Air Ride AR80 25,000 lb. Capacity
-
**Brakes: 16.5x7 Full Air / Spring Brakes
-
Oil Seal Hubs: Internal Mated Assembly
-
Pin Setting: 15/42" Dual Position
-
Swing Clearance: 113" (13' Neck)
-
Loaded Ground Clearance: 8"
-
Loaded Deck Height: 24"
-
Gooseneck: 13' 7" HD with Provision for Flip
-
Width: 2"
-
Decking: 2" Nominal, Apitong Track Area
-
Air / Electrical: Glad Hand / 7-Way Receptacle
-
Hydraulic Hook Up: Quick Couplers 2500 PSI / 17 GPM
-
Lights: Grote "SuperNova" LED - 10-Year Warranty
-
Wiring Harness: Grote "Ultra-Blue Seal" - 7-Year Warranty
-
Finish: Steel Grit Shot Blast to Bright Metal
-
Powder Coat Color: White / Black / Yellow / Blue / Red / Green
-
Tie Downs: 10 "D" Rings
-
Decals: Hi-Visibility Reflective Package
-
Tool Box: (41"W x 20"L x 10"D) Between Main Frame
-
Cylinders: 2 - 10" x 8" Vertical Mount, Centralized Grease System; Powder Coated Black
-
Hitch: Fifth Wheel Kingpin
-
Accessories: Fifth Wheel Type Automatic Gooseneck Lock Engagement with Lock / Unlock, Visual From Tractor Cab, Automatic Slack Adjusters, Rail Stiffeners
*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
Specifications subject to change without notice.
|
